Liftboy 5

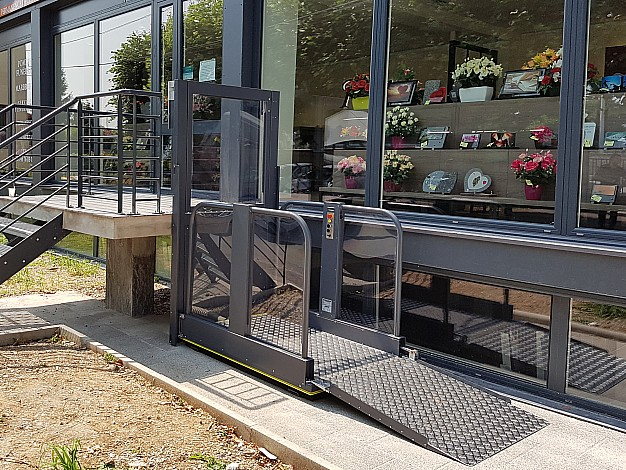

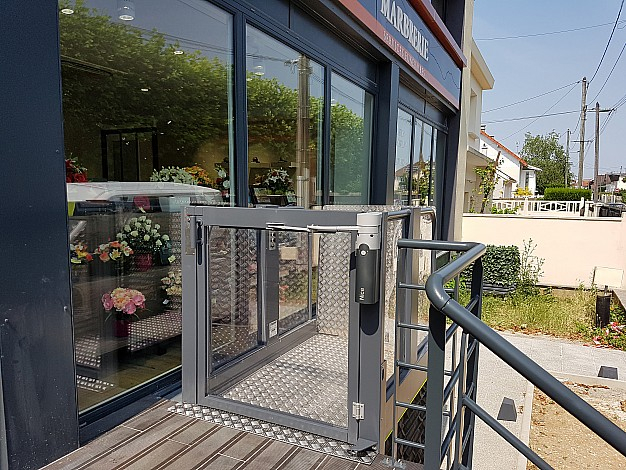

Lifting height up to 1300mm Electrical double-scissor drive Stable and robust platform Platform size up to 1100x1400mm Automatic folding ramp Optional gate on the platform Optional automatic gate openers Emergency power supply and emergency lowering of the platform The Liftboy 5 is an unique vertical platform lifts with a lifting height of 1300mm. This double-scissor lifting table is driven by 2 electric actuators and achieves a collapsed height of only 120mm. The lift is equipped with an automatic access ramp as standard. As an option it can be equipped with a platform gate instead of the ramp. Furthermore a 90° entry on the lower level, as well as with automatic door openers are available as an option. The lift construction is based on the European Norm EN 81-41. It is thus suitable for public and private installation alike and its modern and robust design fulfils highest customer expectations regarding aesthetics and endurance.

Specifications

Max. lifting height:

1300 mm

Lifting speed:

25 mm/s

Max. loading capacity:

315 kg

Surface treatment:

RAL 7035

Drive:

2 x 24V actuators

Power supply:

2 x 12V batteries on the platform

Platfrom width:

900 or 1100mm

Platform length:

1400mm
